xIntroducing Delta HMPE: The Next Generation HMPE Rope
Discover the power and versatility of Delta HMPE, our latest Ultra High Molecular Weight Polyethylene (UHMWPE) rope, engineered for superior performance in a variety of demanding applications.

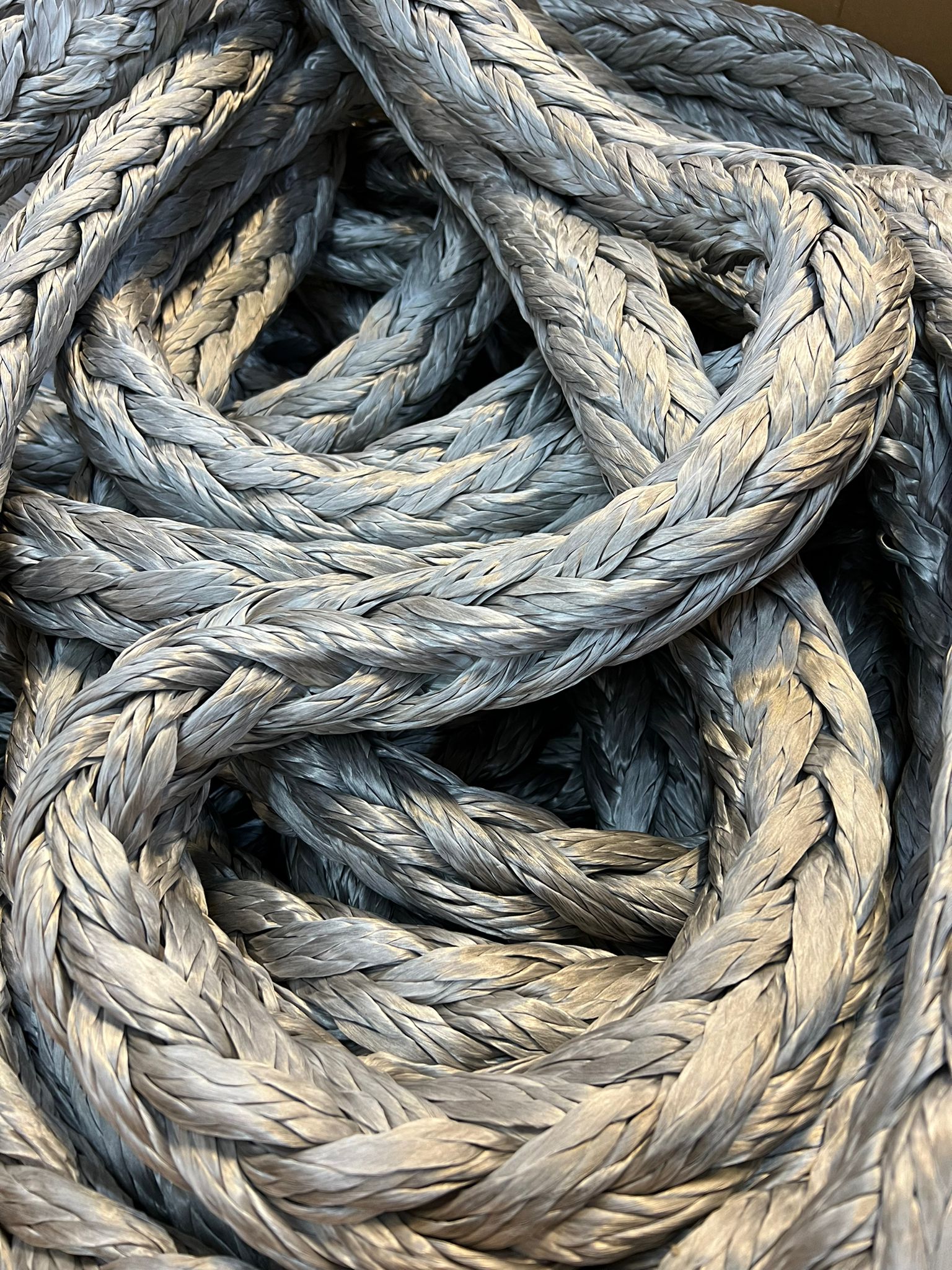

Unveiling the Strength of Delta HMPE UHMWPE Rope
Delta HMPE sets a new standard in synthetic ropes with its remarkable strength-to-weight ratio, rivaling traditional wire ropes while being significantly lighter. Ideal for rigorous lifting and rigging, this rope is a game-changer in efficiency and safety.
Explore Our Delta HMPE Variants
We proudly offer two groundbreaking designs in the Prime 12 series:
The Classic 12-Strand Delta: A synthesis of flexibility and strength, this rope is perfect for dynamic applications requiring both durability and agility.
The Robust 12x12 Delta: A powerhouse of twelve interwoven 12-strand ropes, this version is designed for the most challenging tasks, offering unmatched stability and resistance to wear and tear.
Advantages of Delta HMPE Over Traditional Wire Ropes
Embrace the future with Delta HMPE Rope, which excels over conventional wire ropes in several key areas:
Featherweight Power: Enjoy the power of a heavyweight in a lightweight form, simplifying handling and operations.
Splicing Made Simple: Our rope allows for quick and efficient splicing, reducing downtime and requiring minimal expertise.
Enhanced Safety Features: With a lower risk of recoil and easier wear detection, Delta HMPE is a safer alternative in critical applications.
Supreme Flexibility: Its superior bending and fatigue resistance make it ideal for tasks requiring high adaptability.
Versatile Applications of Delta HMPE
Delta HMPE unique properties make it an excellent choice for replacing wire ropes across various industries. Its buoyancy and water resistance make it perfect for marine applications, while its strength and flexibility are ideal for creating efficient lifting slings and winch lines.
Available in both the 12-strand and 12x12 configurations, Delta HMPE can be purchased by the foot or in full spools. For guidance on selecting the right Delta HMPE rope for your needs, feel free to reach out to our expert team.
| DIA (inch) | Min. B.Load (lbs) Spliced | Min. B.Load (lbs) Unspliced | Weight (lbs/ 100ft) | DIA (mm) | Min. B.Load (kgf) Spliced | Min. B.Load (kgf) Unspliced | Weight (kg/ 100m) |
| 1-5/8" | 291060 | 323077 | 65.88 | 40 | 132300 | 146853 | 98 |
| 1-3/4" | 319000 | 354090 | 79.32 | 44 | 145000 | 160950 | 118 |
| 2" | 356400 | 395604 | 92.77 | 48 | 162000 | 179820 | 138 |
| 2-1/8" | 429000 | 476190 | 112.93 | 52 | 195000 | 216450 | 168 |
| 2-1/4" | 484000 | 537240 | 124.36 | 56 | 220000 | 244200 | 185 |
| 2-1/2" | 530200 | 588522 | 150.58 | 60 | 241000 | 267510 | 224 |
| 2-5/8" | 596200 | 661782 | 170.74 | 64 | 271000 | 300810 | 254 |
| 2-3/4" | 661100 | 733821 | 190.24 | 68 | 300500 | 333555 | 283 |
| 3" | 781000 | 866910 | 215.78 | 72 | 355000 | 394050 | 321 |
| 3-1/8" | 850300 | 943833 | 235.28 | 76 | 386500 | 429015 | 350 |
| 3-1/4" | 941600 | 1045176 | 262.17 | 80 | 428000 | 475080 | 390 |
| 3-1/2" | 1111000 | 1233210 | 301.16 | 84 | 505000 | 560550 | 448 |
| 3-5/8" | 1251800 | 1389498 | 321.32 | 88 | 569000 | 631590 | 478 |
